Magnetic encoders

Eltomatic has developed several incremental encoders for customers using our patented magnetic detection scheme. These encoders are completely integrated with the flowmeter, where the magnetic disk is placed outside the encoder housing. The encoder can either be built into the flowmeter housing or it can be mounted at the end of the flowmeter. Development of such kind of integrated encoders is always done in close cooperation with the developers of the flowmeters.

Our magnetic encoder are tested and granted ATEX, IECEX and MID part certificates.

Magnetic encoder ME14-02

The encoder type ME14-02 is a very rugged unit which is suitable for easy mounting. The ME14-02 was originally designed to be mounted as the top part of the meter which is reducing the system cost, preventing leakage through the bearings.

Magnetic encoder ME14-02

Dimension: ø80 + fixation for screw

Resolution: Up to 1024ppr

Output: Quadrature, CAN and MODbus

Power Supply: 5-15V

Temperature: -32°C to +60°C

Magnetic Encoder 01-02

The rotational detection in ME01-02 is made with a magnetic code disk and a Hall sensor using our patented magnetic detection scheme

As there is no rotating shaft in these magnetic encoders they are completely watertight.

Magnetic Encoder 01-02

Dimension: 65mm x 65mm

Resolution: 2ppr

Output: Quadrature

Power Supply: 4.5-5.5VDC

Temperature: -30°C to +70°C

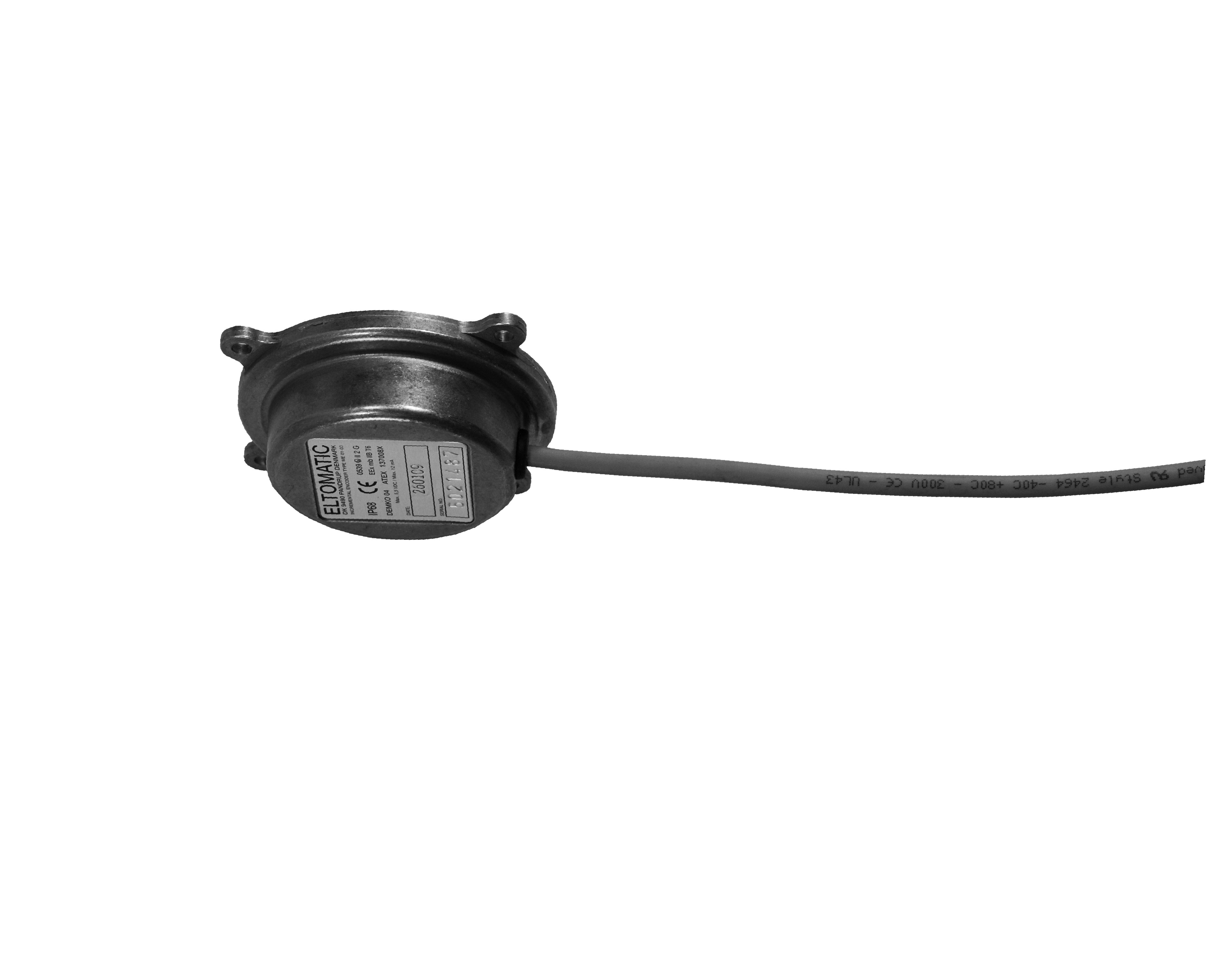

Magnetic encoder 01-03

Designed for vapor recovery installations, but is also used for other aplications due to the compact design and low cost.

Magnetic encoder 01-03

Dimension: ø70 + fixation for screw

Resolution: 2ppr

Output: Quadrature or CAN

Power Supply: 5-24VDC

Temperature: -30°C to +70°C

Magnetic encoder 01-04

The rotational detection in ME01-04 is made with a magnetic code disk and a Hall sensor using our patented magnetic detection scheme

As there is no rotating shaft in these magnetic encoders they are completely watertight.

Magnetic encoder 01-04

Dimension: 65mm x 65mm

Resolution: 2ppr

Output: Quadrature

Power Supply: 4.5-5.5VDC

Temperature: -30°C to +70°C
